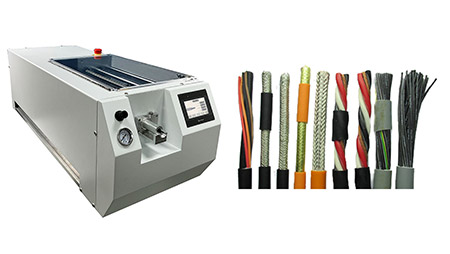

JCW-S2546
Can process various thick and hard insulating materials
Can perform partial stripping and window stripping
Use 4-blade system rotary cutting head, no need to change blades
High flexibility, rotary cutting, high stability
Retract function (blade slightly opens when stripping)
Stripping length up to max 600mm
| Model | JCW-S2546 Versatile Cable Stripping Machine |
| Cable diameter | 2 - 26 mm |
| Cutting depth increment | 0.1 - 0.25 mm |
| Stripping layers | 9 |
| Stripping length | 7 - 400mm [ 600mm on request ] |
| Pull-off length | 0 - 200mm [ 400mm on request ] |
| Insulation thickness | Max 6mm |
| Insulation material | PVC,PUR,rubber,Teflon® ,Tefzel®,Kapton,etc |
| Cycle time | Min 2.0 seconds |
| Recipe | 100 |
| Display | 4.3" color touchscreen, English / Chinese [ other languages on request ] |
| Blade | 4 pcs |
| OEM | Yes |
| Air supply | 0.5 - 0.7 MPa ( clean and dry air ) |
| Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz, 800VA |
| Dimensions | L 1170 x W 430 x H 410 mm |
| Weigh3t | 80 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
