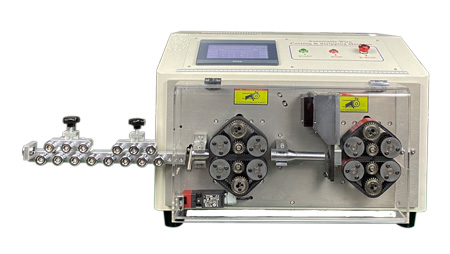

Universal Belt Feed Wire and Cable Processing Machine [ 0.1-25 / 35mm² ]

JCW-CS05A

Upgraded version of CS05

One machine for all cables from 0.1 to 25 or 35sqmm

High-quality belt-feeding system

12 rollers driven by high torque hybrid step motors

AV battery cable, multiconductor cable, PVC, rubber, etc

Fully-covered safety guard is optional

Inquire Now

Fully Covered Guard, Interlock Sensor [ On request ]

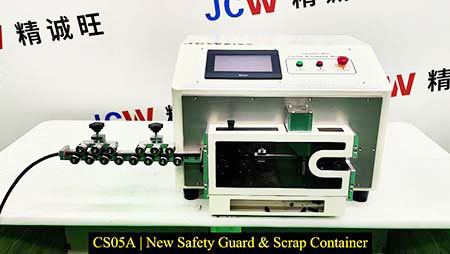

Metal Made Safety Guard & Scrap Container [ On request ]

Model	JCW-CS05A Belt Feed 25-35mm² Cable Cable Processing Equipment
Function	Single wire, Multicore cable, Wire measuring, Cut length, Full stripping, Partial stripping, Mid-stripping, Cut depth, Wire lack sensor, Length correction
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections	25SQ MODEL: 0.1 - 25 mm², 12 mm O.D
Conductor cross-sections	35SQ MODEL: 0.1 - 35 mm², 14 mm O.D
Guide inner diameter	4 / 6 / 8 / 10 / 12 / 14 ( 16 ) mm
Cutting length ( L )	0.1 - 999999 mm
Cutting length accuracy	0.002 x L
Stripping length	Front ( right ) side: 100- 250 mm
Stripping length	Rear ( left ) side: 70-120 mm
Middle strip	13 sections
Production rate	25SQ MODEL: 1000-1500 pcs/h by 100mm wire length
	35SQ MODEL: 800-1000 pcs/h by 100mm wire length
Data library	100 programs
Flat cable	Slit and strip, by changing straightener, guide and blade
Multicore cable	Outer jacket stripping only
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Cable feeding	12 rollers driven belt system
Blade type	V-blade, radius blade
Compatible peripherals	Cable prefeeding machine, robot arm, conveyor belt
Rated power	1800 W
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	Machine: L 650 x W 580 x H 450 mm
Dimensions	Wire straightener: 350mm
Weight	75 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
