0.35 - 6mm² Cable Stripping Twisting Ferrule Crimping Machine

JCW-F3 Ferrule

Ideal electro-pneumatic controlled strip & crimp machine

Loose piece tubular bootlace ferrules max length 12mm

Insulated end sleeves ranging from 0.35 to 6.0 mm²

Fast exchanging a few parts for different cross-sections

Cycle time for each operation is 2.5 seconds

Quadrilateral / Hexagonal / Trapezoidal crimping profiles

Inquire Now

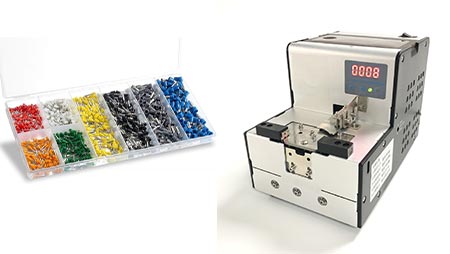

4 Feeders Processing Ferrules Ranges From 0.3 to 6.0sq mm

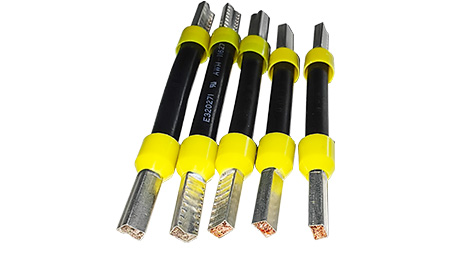

6mm² Insulated End Sleeve Custom Trapezoidal Crimping Profile

Model	JCW-F3 0.35-6mm² Wire Stripping Ferrule Crimping Machine
Function	Single wire, Multicore cable, Wire end stripping, Conductor twisting, Tubular insulated terminal, Quadrangle crimping, Indent crimping, Stripping length, Cutting depth, Data library
Conductor cross-section	0.35, 0.5, 0.75, 1.0, 1.5, 2.5, 4.0, 6.0 mm² [ changing ferrule feeder ]
Ferrule feeder	4 sets
Stripping length	Max 15 mm
Multicore cable prepare	Outer sheath stripping length minimum 40 mm
Crimping shape	Quadrilateral / Hexagonal / Trapezoidal [ Customizable ]
Crimping length	6 - 12 mm
Cycle time	2.5 seconds, 1000 - 1300 pcs / hr
Display	4.3" color touchscreen, English / Chinese [ other languages on request ]
Customize logo	Yes
Rated power	400 W
Air supply	0.6 - 0.8 MPa ( clean and dry air )
Power supply	AC 110 - 220V ± 10%, 50 / 60 Hz
Dimensions	L 430 x W 505 x H 425 mm
Weight	68 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
