120mm² Battery Cable Stripping Machine

JCW-S200

Cable up to 25mm O.D.

Stripping length up to 200mm

Color touchscreen, fully programmable

PUR, PVC, Teflon, Tefzel, etc

Inquire Now

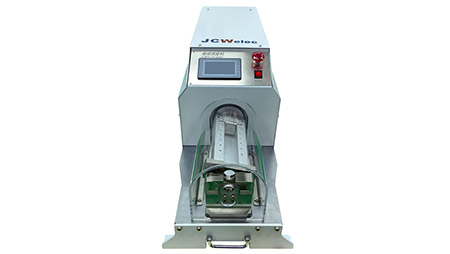

JCW-S200 Heavy Battery Cable End Rotary Stripping Machine

Cable up to 25mm O.D, stripping length up to 200mm

The JCW-S200 cable stripping machine is designed for heavy cable end stripping. This rotate stripping machine is suitable for heavy-duty multicore cable, EV cable, etc. This powerful strip machine uses rotary cutter heads, which allow vertical cutting into thick insulation. Powerful cylinders ensure precise and neat pull-off.

Model	JCW-S200 Heavy Cable End Rotary Stripping Machine
Function	Full stripping, partial stripping, stripping length, data library, EV cable
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections	10 - 120 mm²
Cable diameter	10 - 25 mm
Stripping length	1 - 200 mm
Stripping length tolerance	0.02 mm
Display	4.3" color touchscreen, English / Chinese [ other languages on request ]
Recipe saving	99
OEM	Yes
Air supply	0.5 - 0.7 MPa ( clean and dry air )
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Dimensions	L 1400 x W 330 x H 420 mm
Weight	80 - 110 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
