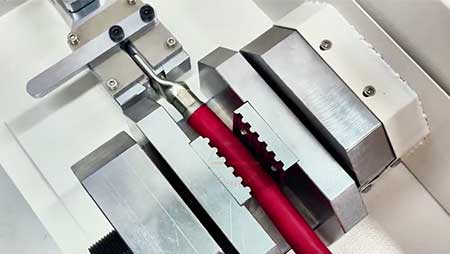

1000 Kg.F Pull Force Testing Machine

JCW-Q1000

Automatic tighten, measures and displays the force value

Easy to operate, accurate measurement

Destructive testing peak force

Set upper limit and holding time for non-destructive testing

Self-developed software, peak graph, curve graph, data library

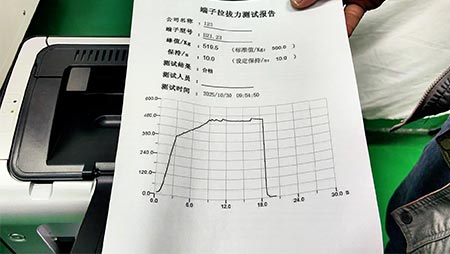

Print test reports, export test data, and query historical test records

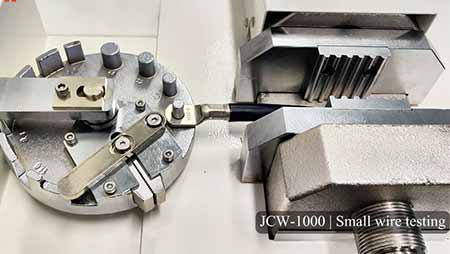

Standard & custom dies for selection

Inquire Now

Model	JCW-Q1000 1000 Kg.F Pull Force Testing Machine
Function	Pulling speed, destructive test, non-destructive test, test software, curve display, print test report, automatic reset, RS232, MES connection
Measuring range	Max 1000 KG.F
Pulling speed	Programmable, 1 - 500 mm/min
Data library	YES
Curve gragh display	YES
MES connection	YES
USB export data	YES
Printer connection	YES
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Rated power	300 W
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Dimensions	L 710 x W 490 x H 295 mm
Weight	65 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
