68kN Pneumatic Tubular Cable Lug Crimping Machine

JCW-320L

RN & SC Battery Cable Lug Crimping Machine

Lug range up to 120 mm²

68KN crimping force

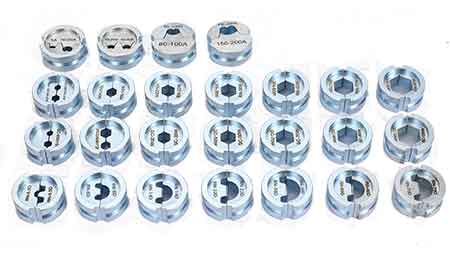

25 sets of the crimp die sets for option

Hexagon / Indent / Open barrel "B" type crimping

Fast crimp die sets changeover

Inquire Now

Heavy-duty Lug Crimping Machine

Model	JCW-320L Heavy-duty Pneumatic Lug Crimping Machine
Function	Non-insulated terminal, copper tube lug, O-ring tubular terminal, Open barrel terminal, Fast change die set.
Capacity	6 - 120 mm²
Crimping width	8 mm
Crimping force	6.8 Tons
Crimp dies sets	25 sets for selection
Air regulator	Yes
OEM	Yes
Activation	Foot pedal
Air supply	0.5 - 0.8 MPa ( clean and dry air )
Dimensions	L 390 x W 180 x H 230 mm
Weight	14 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
