Max 4 Cores Sheath Cable Multi-lengths Stripping Machine

JCW-S04

Servo motorized, fully programmable, compact design,

Process max 4 cores sheathed cable

Cut wires into same or different lengths, strip the insulation

High performance, low maintenance

Simple operation, 7" color touch-screen

Adjustable structure, wide range of cables

Inquire Now

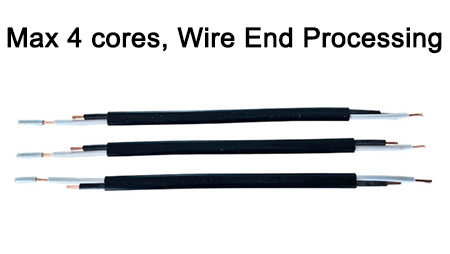

Cut to different lengths, strip wire end

JCW-S04 Servo Motorized Power Cord Cable Cutting Stripping Machine

The JCW-S04 cable stripping machine combines a high torque servo motor, due to unique cutter blades and cable positioner, the JCW-S04 is capable to strip max 4 wires simultaneously and cut the wires into the same or different lengths. Precise cutting length and stripping length offer you a huge advantage over labor work.

Model	JCW-S04 Servo Motorized Power Cord Cable Cutting Stripping Machine
Function	Inner wire of multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Different stripping length
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Capacity	0.5 - 3.0 mm²
Cutting length ( L )	20 - 290 mm
Stripping length	5 - 15 mm
Data library	100 programs
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.5 - 0.8 MPa ( clean and dry air )
Dimensions	L 900 x W 500 x H 1360 mm
Weight	100 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
