Economical wire harness testing instrument
Electronic wiring, flat ribbon cable
Independent point design
64/128 test points
JCW-Q01
Economical wire harness testing instrument
Electronic wiring, flat ribbon cable
Independent point design
64/128 test points

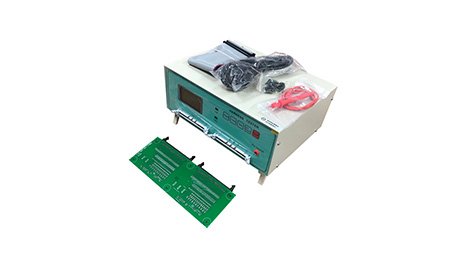

Wire Harness Continuity Tester
Model | JCW-Q01 Multi-function Wire Continuity Tester |
Function | Short circuit, Open circuit, Dislocation, Momentary short/open circuit |
Test mode | Automatic/Manual mode, Ins.Test (Bending) Test, Loop (cycling) Test, Segment Test. Pin search. |
Capacity | 64 / 128 test points |
Cycle time | <0.1 second |
Wire harness type | Single-end, dual-end |
Test voltage | DC 5V |
Test current | < 20mA |
Test standard | 1K, 2K, 5K, 10K, 50K |
File saving | Read and save standard |
Ambient temperature | Work: 0 - 40℃. |
Stock: -40 - 75℃,0 - 85% R.H | |
Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz, <10 W |
Dimensions | L 310 x W 250 x H 135 mm |
Weight | 3 KG |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
