Automatic End-feed Wire Stripping & Crimping Machine

JCW-2TD-END Electronic Rear-feed Wire Stripping and Crimping Machine

Stripping before crimping, precisely position wire and crimp terminal onto the wire

High precision for various end-feed terminals

The JCW-2TD-END wire stripping and crimping machine is designed to process the rear-feed terminal in a roll, it's capable of stripping the wire and crimping terminal in one work step. The wire gripper holds the wire tightly and positions it above the terminal precisely, the user does not need to move the wire so to guarantee high precision. Insulation cutting accuracy and wire position accuracy are 0.05 - 1 mm.

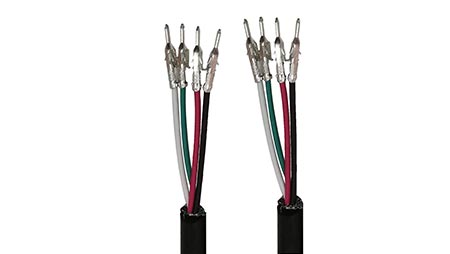

The JCW-2TD-END stripping and crimping machine applies to various end-feed terminals, such as shark teeth connector, 187, 250, O ring and flag terminals, etc.

Compact and reliable

The JCW-2TD-END wire stripping and crimping machine only requires a similar space as a regular semi-auto terminal crimping machine. It featured a really compact wire gripper in order to make it more approachable to the front working area.

The robust design of the whole machine and crimp applicator guarantee long service life and reliable performance. The machine speed is adjustable to suit the proficiency of the operator.

The JCW-2TD-END stripping and crimping machine can be equipped with a crimp force monitor. This stripping and crimping machine is equipped with a scrap vacuum system and lighting of the working area.
