10mm O.D Universal Wire and Cable Cut and Strip Machine

JCW-CS06

Excellent price-performance Ratio

Multicore sheathed cable, multi-layer stripping

PVC, Teflon, Silicone, Low halogen, Fiber glass cables

Cable range up to 10mm O.D or 16sqmm

4.3" color touch screen, user-friendly interface

6 rollers driven by high torque hybrid step motors

Fully programmable model saves 100 programs

Equipped regular safety guard

Fully covered safety guard only on request

Inquire Now

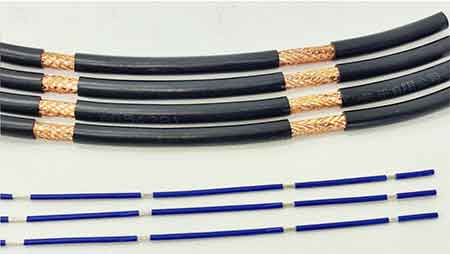

Single Core Flexible Wire Stripping

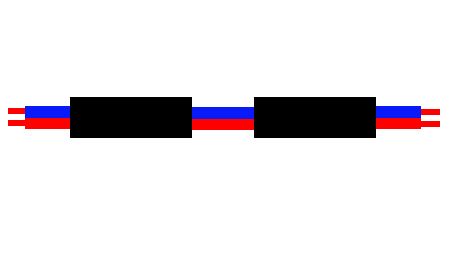

Flat Sheathed Power Cable

JCW-CS06 High-speed Comprehensive Wire/Cable Cut and Strip Machine

6 rollers cable feeding system, versatile cut & strip platform

Versatile cut & strip machine

The JCW-CS06 is a comprehensive wire cutting and stripping model for processing various single wire, multicore cables. It perfectly suits the wire harness factory and end-users who have various wire types, and wish to process all in one machine. Each CS06 comes with a complete set of guide tubes that cover a wide range of wires at different diameters, fast changeover optimizes the cable cutting and stripping, guaranteeing the same precision.

Base on the standard model, we developed JCW-CS06Z, which is specifically for parallel placed 2 core twin flat cable. It allows cable slitting, cutting, and dual-end stripping in one work cycle. The slitting length is programmable, and the slitting unit is specially made for specific cable gauge, it guarantees the slitting precision with no damage to the conductor.

Easy to use

The standard model comes with an English display, the machine language is customizable. A user-friendly interface and color touchscreen make the operation so accurate and simple.

- The control with touch screen has an intuitive user interface for simple and safe operation.

- The parameters such as wire cutting length, stripping length, wire diameter, speed, etc. can be accurately entered and stored for future recall at any time.

- Data library saves 100 programs, you can name each one by a wish.

- This cutting and stripping machine features an automatic one-touch calibration function for cutting length.

- Wire run-out sensor gives the machine a stop signal while the wire is used out.

- Quickly change guide tubes and cutter blades.

Various options for specific applications

- Wire unwind & pre-feed machine, load range from 15 to 1000 KG

- Robot arm controlled by CS06

- Cable stacker, 1 meter to 6 meters

- V-blade, Multi-V blade, Radius blade, Flat blade

Model	JCW-CS06 10MM O.D Cable Multi-layer Cutting and Stripping Machine
Function	Single wire, Multicore cable, Wire measuring, Cut length, Full stripping, Partial stripping, Mid-stripping, Cut depth, Wire run-out sensor, Length correction
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections	0.1 - 16 mm², 10 mm diameter
Cutting length ( L )	0.1 - 999999 mm
Cutting length accuracy	0.002 x L
Stripping length	Front ( right ) side: 150 mm [ partial stripping ]
Stripping length	Rear ( left ) side: 70 mm [ partial stripping ]
Middle strip	13 sections
Production rate	Single Wire: 2500 pcs/h by 100mm wire length
Production rate	Multi-layer stripping: 1600 pcs/h by 100 wire length
Data library	100 programs
Twin flat cable	Slit and strip, by changing straightener, guide, and blade ( optional )
Flat multicore cable	Outer jacket and inner conductor stripping
Round multicore cable	Outer jacket stripping
Display	4.3" color touchscreen, English / Chinese [ other languages on request ]
Cable feeding	6 rollers
Compatible peripherals	Cable prefeeding unit, robot arm, cable stacker
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	Machine: L 560 x W 470 x H 370 mm
Dimensions	Wire straightener: 250mm
Weight	45 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
