Process 2 & 3 cores flat cable, strip both outer jacket and inner wires.
Special-made Multi-V blade.
Color touchscreen, customizable display.
JCW-CS03M
Process 2 & 3 cores flat cable, strip both outer jacket and inner wires.
Special-made Multi-V blade.
Color touchscreen, customizable display.

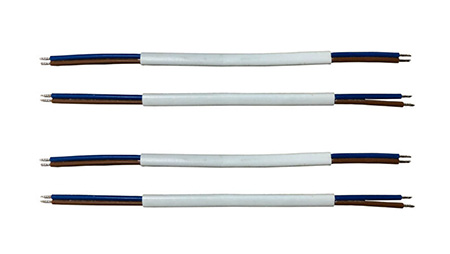

Flat Sheathed Cable Cutting 2-layers Stripping
Model | JCW-CS03M Flat Cable Cutting and Stripping Machine |
Function | 2 & 3 cores flat cable, Cable measuring, Cut into length, Outer jacket and inner wire stripping, Wire lack sensor, Length correction, Data library |
Conductor cross-sections | 2 x 3.0 mm² |
Cutting length ( L ) | 0.1 - 999999 mm |
Cutting length accuracy | 0.002 x L |
Outer stripping length | Front ( right ) side: 100 mm [ Full stripping ] |
Rear ( left ) side: 30 mm [ Full stripping ] | |
Inner stripping length | 30 mm |
Production rate | 1800 pcs/h by 100mm wire length |
Data library | 100 programs |
Display | 4.3" color touchscreen, English / Chinese [other languages on request] |
Compatible peripherals | Wire prefeeder, robot arm, conveyor belt |
Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
Air supply | 0.4 - 0.7 MPa ( clean and dry air ) |
Dimensions | Machine: L 700 x W 680 x H 1050 mm |
Wire straightener: 250mm | |
Weight | 75 KG |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
