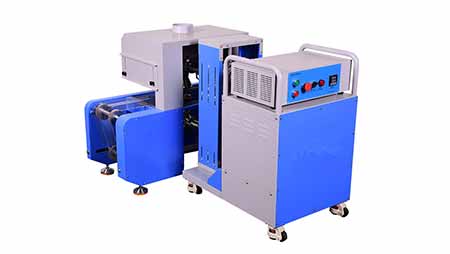

JCW-HSB20T
Designed for shrinking PTFE tubing, long and thick shrinkable tubing
Single or dual-side shrinking is selectable
Shrinking width and position are adjustable
Overheating and overload protection
Power outage protection device
Emergency stop switch
Phase sequence protection
Air volume is adjustable
No waste gas
460℃ Heat Shrinking Machine
| Model | JCW-HSB20T Teflon Shrinkable Tubing Processing Machine |
| Heating oven | Width and height are all adjustable |
| Wire harness diameter | φ 50 mm |
| Belt conveyor material | Stainless steel |
| Belt conveyor width | 250 mm |
| Heating width | 90 mm |
| Feeding height | 60 mm |
| Transfer speed | 1 - 3 m/min |
| Heat temperature | 460℃ |
| Noise | 48 dB |
| Rated power | 12.3 kW |
| Power supply | AC 380 V ± 10%, 50 Hz |
| Dimensions | L 1130 x W 580 x H 630 mm |
| Weight | 62 + 51 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
