Conveyor Belt Oven Heat Shrink Sleeve Heating Tunnel

JCW-HSB20

Teflon braided conveyor belt, 200mm in width

Infrared radiation heating, closed-loop time and temperature contro

Digital display heating temperature

Safety grade PE ground wire

Quick adjustment of heating tube height

Material dimensions φ100 x L130mm

Inquire Now

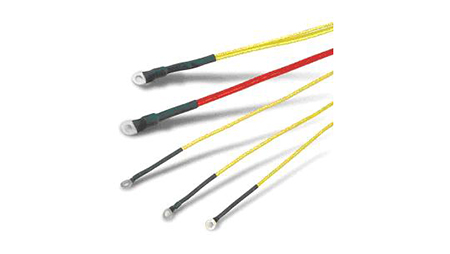

Hook-up Wire Heat-Shrinkable Tube Insert & Shrink

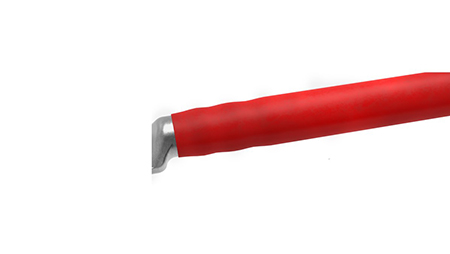

90-Degree Battery Cable Lug Heat Shrinking

JCW-HSB20 Conveyor Belt Heat-shrinkable Sleeve Heating Tunnel Oven

The JCW-HSB20 is a heat shrink system based on infrared resistors, which is able to process several different types of parts at the same time. The model JCW-HSB20 tunnel oven offers a controlled process for a wide variety of heat-shrinkable products. The whole set of equipment consists of conveying system, heating system and control system.

Model	JCW-HSB20 Conveyor Belt Heat-shrinkable Sleeve Heating Machine
Heating length	200 mm
Material diameter	φ 18 mm
Belt conveyor material	Teflon
Belt conveyor width	200 mm
Transfer speed	0.5 - 3 m/min
Heat temperature	200℃
Noise	45 dB
Rated power	1860 W
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Heat zone	520 x 460 mm
Dimensions	L 1000 x W 460 x H 550 mm
Weight	45 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
