JCW-CST09
Double sides 8 wires strip to solder
Wire Range: AWG 32 - 18
Cutting length: 8 - 850 mm [ 1200/1500/1800mm on request ]
Leading strip length: 0.1 - 12 mm
Trailing strip length: 0.1 - 15 mm
Twisting length: 2 - 10 mm
Tinning length: 1 - 12 mm
12000 pcs/h by 100 mm cut length
Fully-auto-Wrie-Tinning-Machine

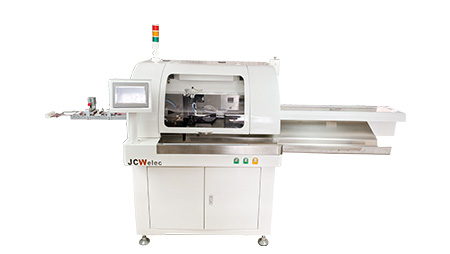

JCW-CST09 Automatic Servo Motorized Wire Strip and Solder Machine
High-level model for precise wire stripping and soldering
Feature of the machine
The JCW-CST09 is a response to the growing needs of the rapidly evolving digital consumer electronics industry. This highly efficient automatic 8 wires crimping and soldering machine serves various applications: wire cutting and stripping, wire twisting, fluxing and tinning. The JCW-CST09's processing capacity is reaching 6600 to 12000 pieces per hour. The standard model offers 850mm cutting length, 1200mm-1500mm-1800mm are all optional. The compact machine design provides economic flexibility and high productivity.
High quality, high output, and simple operation
The JCW-CST09 integrates high-quality components: 6 sets of MITSUBISHI servo motors, THK/TBI guide, FESTO valve, highly rigid transmission structure, high-speed control system. Super user-friendly interface and 7" touch screen interface offer accurate input and clear vision. A motorized digital wire twisting monitor brings perfect wire tinning. Vivid detectors ensure high-quality production: wire lack detection, wire knot detection, stripping detection, air pressure detection, etc.
Various peripherals and options
- Ultrafine wire AWG 32
- Ultra short processing 8 mm
- 1200mm / 1500mm / 1800mm cutting length
- Wire prefeeder for keeping proper wire tension
- Conveyor belt for stacking finished wire
- Customize HMI, language & logo
| Model | JCW-CST09 Automatic 8 Wires Stripping and Tinning Machine |
| Function | Single/dual end stripping, Full stripping, Partial stripping, Middle stripping, Double sides fluxing & tinning, Cut depth, Pull-off length. |
| Wire range | AWG 32 - AWG 18 |
| Raw material | PVC, Teflon, Low halogen, etc. |
| Cutting length ( L ) | 8 - 850 mm [ 1200-1500-1800mm on request ] |
| Cutting length tolerance | 0.002 x L |
| Stripping length | Leading strip: 0.1 - 12 mm |
| Trailing strip: 0.1 - 15 mm | |
| Twisting length | 2 - 10 mm |
| Tinning length | 1 - 12 mm |
| Production rate | 12000 pcs/h by 100mm cutting length |
| Data library | 100 programs |
| Detector | Wire lack, Wire knot, Wire stripping, Terminal crimping, Air pressure |
| Optional peripherals | CFM, Wire unwinder, Conveyor belt |
| Display | 7" touch screen, English / Chinese [ other languages on request ] |
| Power supply | AC 110 - 220V ± 10%, 50 / 60 Hz |
| Rated power | 3 KW |
| Air supply | 0.4 - 0.7 MPa [ Clean and dry air ] |
| Weight | 550 KG |
| Dimensions | L 1500 x W 850 x H 1600 mm |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
