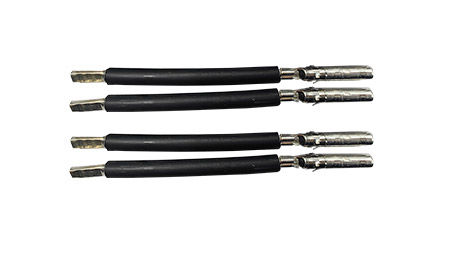

Uninsulated Plug Crimping Machine

Uninsulated Plug Crimping Machine

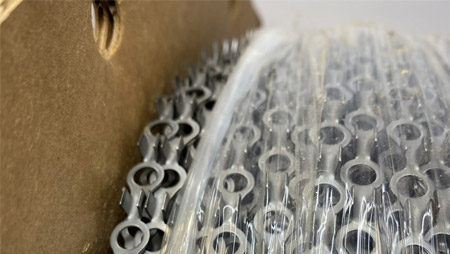

The JCW-CST02 VIB is a fully servo motorized dual-end wire crimping machine. Reinforced mechanical structure increases the machine’s capacity to 6mm²wire. By adding 1 or 2 sets of vibrate feeding systems, the machine can process both reeled terminal or loose-piece terminal. This flexible terminal crimping machine is fully programmable.


ModelJCW-CST02 VIB Automatic Vibrate Bowl Feeding Loose-piece Terminal Crimp Machine
Wire cross-section

0.3 - 2 mm² [ 6 mm² is customizable ]

Strip length1.0 - 15 mm
Cut length ( L )50 - 99999 mm
Cut length tolerance± 1mm + 0.002 x L
Crimp force20KN (2.0 tons)  [ 40 KN on request ]
DetectorWire lack, Terminal crimping, Wire knot, Air pressure [ CFM on request ]
Production rate

2000-2700 pcs/hr ( L ≤300mm )

Data library100 programs
Display7" touch screen, English / Chinese  other languages on request ]
Power supplyAC 220V ± 10%, 50 / 60 Hz
Air supply0.4 - 0.7 MPa [ Clean and dry air ], 150 (ANR) / min
Weight520 KG
Dimensions

L 2000 × W 920 × H 1600 mm

CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
