JCW-CST01
Cross section: 0.1 - 2 mm² ( AWG28 -14 ) [ 4mm² on request ]
Cutting length: 45 - 999999 mm
Stripping length:1.5 - 10 mm
Crimping force: 20 KN [ 40 KN on request ]
4200 pcs/h by 300mm wire length [ CRIMP / TWIST ]
Display: English / Chinese [ Other languages on request ]
Reeled Terminal Crimping
Loose-piece Terminal Crimping
JCW-CST01 Fully Automatic Wire Stripping Terminal Crimping Machine

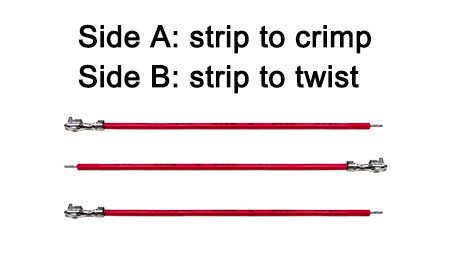

Single Wire Single-end Crimp & Single-end Strip to Twist
Feature of the machine
The JCW-CST01 is an entry-level model automatic crimping machine and serves various applications. The machine allows wire cutting, stripping, crimping, and twisting of wires in the cross-section range from 0.1 mm² to 2 mm², crimping force is 2 tons ( 20 KN ). The processing capacity can be expanded to 4 mm² and 4 tons crimping force. The compact machine design provides economic flexibility and high productivity over 4000 pieces per hour.
High-quality processing and simple operation
To ensure product quality, JCW integrates high-quality components. Efficient stepper motors, highly rigid transmission structure, high-speed control system. User-friendly interface and 7" touch screen interface offers you accurate input and clear vision. The JCW-CST01 offers vivid detection functions, wire lack detection, wire knot detection, stripping detection, crimping detection, air pressure detection, etc.
Various peripherals and options
- Crimping force monitoring ( CFM )
- Wire twisting function in front side
- 4 tons crimping machine
- Wire prefeeder for keeping proper wire tension
- Vibrate bowl for loose terminal
- Conveyor belt for stacking finished wire
- Customize HMI, language & logo
| Model | JCW-CST01 Automatic Single-end Wire Crimping Machine |
| Functions | Cut depth, Strip length, Full stripping, Partial stripping. Side 1: stripping, crimping. Side 2: stripping, twisting. Data library. |
| Wire cross-section | 0.1 - 2 mm² (AWG 28 - 14) [ Customizable ] |
| Strip length | 1.5-10 mm |
| Strip length increment | 0.1 mm |
| Cut length ( L ) | 45 - 999999 mm |
| Cut length accuracy | ± 1mm + 0.002 x L |
| Production rate | 4200 pcs/h by 300mm wire length |
| Display | 7" touch screen, English / Chinese [ other languages on request ] |
| Data library | 100 programs |
| Crimping force | 20 KN ( 2.0 tons ) [ Customizable ] |
| Optional peripheral | Wire pre-feeder, CFM, wire stacker |
| Detection | Wire lack, Terminal crimping, Wire knot, Air pressure [CFM on request] |
| Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
| Air supply | 0.4 ~ 0.7 MPa [ clean and dry air ] |
| Dimensions | L 650 x W 750 x H 1500 mm |
| Weight | 310 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
