JCW-CS08T
Freestanding floor model
Scrap jacket collector keeps clean workshop
High performance on processing multicore cable
High-speed up to 1300 pcs/h with stripping double ends
Round multi-conductor cable up to 5mm OD
Applicable to thermal transfer printer
Automated length calibration
Fully programmable model
Cable run-out sensor

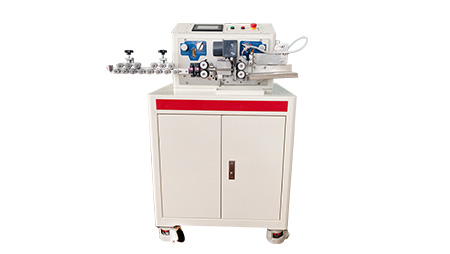

Free-standing Version
Automatic 5mm Multi-conductor Cable Cut & Strip Machine JCW-CS08
Easy to be moved, can work at anywhere of the workshop
Specialist in processing multicore cable
The JCW-CS08T is freestanding cutting and stripping multicore cable up to 5mm O.D, it perfectly cuts and strips both of outer jacket and inner cores at one time. The built-in scrap collector guarantees a clean workshop. It can be moved easily, suited to the customer who has a small workshop. The JCW-CS08T cut & strip machine adopts a titanium coated cutter blade, which has 2 sharp cutting edges.
This cut & strip machine also can be used for single wire up to 8 mm².
Easy to use
Each of the JCW-CS08T cutting and stripping machine comes with English display, the display language is customizable. User-friendly interface and color touchscreen make the operation so accurate and simple.
- The control with touch screen has an intuitive user interface for simple and safe operation.
- The parameters such as wire cutting length, stripping length, wire diameter, speed, etc. can be accurately entered and stored for future recall at any time.
- Data library saves 100 programs, you can name each one by wish.
- Automatic one-touch calibration function for cutting length.
- Cable run-out sensor gives the machine a stop signal while the cable is used out.
- Quickly change guide tubes and cutter blades.
- Transparent safety cover with sensor
A variety of peripherals
- Wire unwind & pre-feed machine, load range from 15 to 1500 KG
- Robot arm controlled by CS08
- Cable stacker, 1 meter to 6 meters
- V-blade, Multi-V blade, Radius blade
| Model | JCW-CS08T Automatic Multi-core Cable Cutting and Stripping Machine |
| Function | Single wire, Multicore cable, Wire measuring, Cut into length, Full stripping, Partial stripping, Mid-stripping, Wire lack sensor, Length correction, Thermal transfer printer |
| Raw material | PVC, Teflon, Silicone, Low halogen, Fiber glass, etc |
| Cable size | 5 mm O.D. |
| Cutting length ( L ) | 0.1 - 999999 mm |
| Cutting length accuracy | 0.002 x L |
| Single wire | YES |
| Multi-core cable | Round |
| Outer jacket stripping length | Leading ( right ) side: 250 mm [ partial stripping ] |
| Trailing ( left ) side: 100 mm [ partial stripping ] | |
| Inner core stripping length | 30 mm at dual-ends |
| Middle strip | 13 sections |
| Production rate | 1300 pcs/h by 100mm wire length [ multi-layer stripping ] |
| Data library | 100 programs |
| Display | 4.3" color touchscreen, English / Chinese [ other languages on request ] |
| Compatible peripherals | Cable unwinder, robot arm, conveyor belt |
| Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
| Air supply | 0.4 - 0.7 MPa ( clean and dry air ) |
| Dimensions | Machine: L 460 x W 470 x H 950 mm |
| Wire straightener: 350mm | |
| Weight | 78 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
