Fully programmable cutting & laser printing
Effective laser printing solution for heat shrink tube
JCW-C01 LASER
Fully programmable cutting & laser printing
Effective laser printing solution for heat shrink tube
Tubing-Cutting-Laser-Printing-Solution

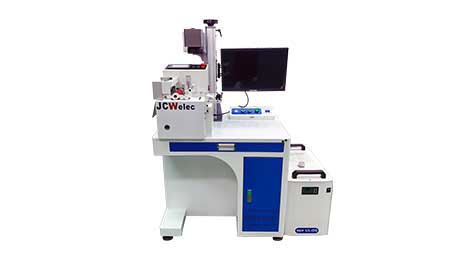

Model | JCW-C01 LASER Heat Shrinkable Sleeve Cutting Laser Marking Machine |
Cut Length | 0.1 - 9999.9 MM |
Laser wavelength | 355 nm |
Beam quality | m²< 2 |
Print speed | ≤ 7000 mm/S |
Mark depth | 0.005 - 1 mm, Adjustable in real time |
Min. width | 0.01 MM |
Cold Method | Water cooled |
Mark zone | 110 x 110 MM |
Graphic format | 2.0/6.0, PLT/DXF/AI/JPG/BMP, etc |
Laser power | 3000 W |
Frequency | 8-15 KHZ |
Accuracy | ± 0.003 MM |
Min. character | 0.2 MM |
USB Port | 2.0 |
Dimensions | L 1100 x W 600 x H 1300 MM |
Weight | 75 KG |
