Belt Conveyor Oven For Heat Shrink Tubing Thermal Processing

JCW-HSB60

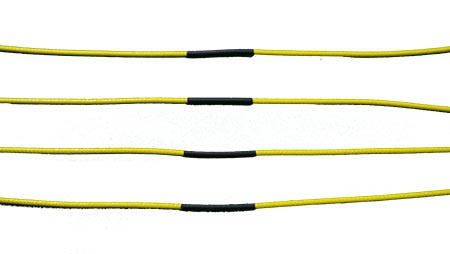

An energy-saving device for shrinking heat-shrinkable tubes onto wire harnesses

Simple operation, low power consumption, highly convenient, energy saving

Heat from above and below, stable shrinkage temperature

The heat-shrinkable product has a good consistency and a sealing effect

Desktop energy-saving equipment, relatively small, high safety performance

Inquire Now

Belt Conveyor Oven

Model	JCW-HSB60 Heat Shrinkable Tubing Processing Equipment
Function	Heat shrinkable tubing, PVC, POF, PP, PE shrink film. Feed speed, temperature controller, counter.
Feeding speed	0 - 100
Working temperature	Max 600 ºC
Shrink length	60 mm [ Customizable ]
Wire diameter	10 mm [ Customizable ]
Wire length	Min 195 mm
Rated power	2300 W
Product rate	2000 pcs/h [ depends on settings ]
Power supply	AC 220 V, 50 Hz
Dimensions	L 1100 x W 230 x H 350 mm
Weight	40 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
