Robust semi-auto crimp press
Compatible with Europe mini-style applicator
Safety protection foot pedal switch
Transparent safety guard

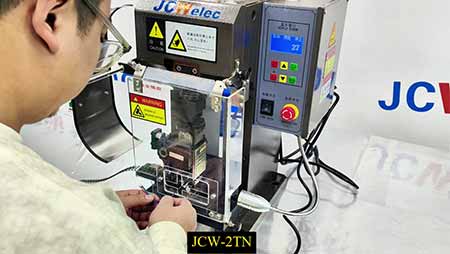

JCW-2TN
Robust semi-auto crimp press
Compatible with Europe mini-style applicator
Safety protection foot pedal switch
Transparent safety guard

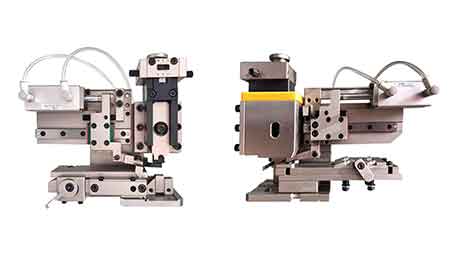

AMP Crimp Applicator
Model | JCW-2TN High-precision Terminal Crimp Press |
Function | Europe mini-style crimp applicator, OTP crimping applicators, side-feed / rear-feed / closed barrel terminals, switch pedal |
Conductor cross-section | 2 mm² [ customizable ] |
Crimping force | 20 KN [ 30 / 40 KN on request ] |
Stroke | 30 MM [ 40 MM on request ] |
Rated power | 2T: 750 W |
3T: 1100 W | |
4T: 1500 W | |
OEM | Yes |
Activation | Foot pedal |
Compatible accessory | CFM |
Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
Dimensions | 2T / 3T: L 300 x W 330 x H 740 mm |
4T: L 320 x W 350 x H 840 mm | |
Weight | 2T: 85 KG |
3T: 90 KG | |
4T: 130 KG | |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
