Semi Automatic Wire Seal Loading Machine

LoadSeal 1012

Optimized seal insertion process

Improved cycle time due to optimized mechanism

Extremely easy to operate

Seals up to lengths of 7-12 mm and outer diameter of 4-10 mm

Positions them over previously stripped wires

Inquire Now

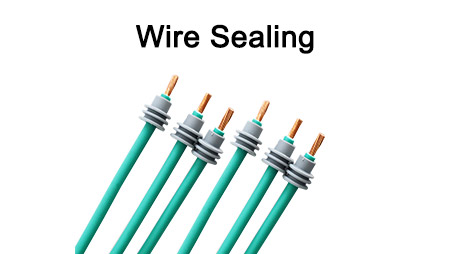

Insert Wire into Industry-standard Seal

The JCWelec LoadSeal 1012 sealing station applies weather seals to stripped and unstripped wires before crimping and can be used on all fully automatic crimping machines of the CST series. It is specifically designed for the demanding requirements of the automotive wire processing industry. Special attention has been paid to precision, processing speed, short set-up time, minimal space requirements and ease of operation. Application sets for quick changeover are available for almost any type of seal, including irregularly shaped seals and hard-shell seals.

Model	LoadSeal 1012 Semi-auto Seal Loader
Seal range	Max O.D. x Length = 13x 14 mm
Adjustment increment	10 mm
Product rate	60 / minute
Display	7" touch screen, English
Rated power	24 VDC, 15W
Air supply	0.5 - 0.6 MPa [ clean and dry air ]
Power supply	AC 110 - 220V ± 10%, 50 / 60 Hz
Dimensions	L 200 x W 600 x H 630 mm
Weight	33 KG
