JCW-CST17
MITSUBISHI servo motorized, fully programmable

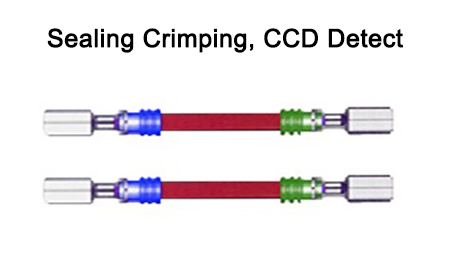

Wire cutting, stripping, sealing, and crimping all in one
High-quality component, high-performance, and reliability
2000 - 2500 pcs per hour, high output
Wire conductor cross-section 0.2 to 2.5 mm²
Automatic detection and sorting of defective products
Optional CFM, CCD inspection systems
Vision Detect Wire Seal Crimping Machine
| Model | JCW-CST17 Automatic Single Wire Sealing to Crimping Machine |
| Function | Wire measuring and cut into length, Wire stripping, sealing, crimping; Sealing alarm. Cut depth, Strip length, Crimp depth, Automatic detect and sort out defective product |
| Raw material | AV, AVS, AVSS, CAVUS, KVKIV, UL |
| Conductor cross-section | 0.2 - 2.5 mm² |
| Cut length ( L ) | 35 - 99999 mm |
| Cut length accuracy | 0.1 mm ± 0.005 x L |
| Strip length | 0 - 15 mm |
| Crimping press | Servo motorized |
| Crimping force | 2.5 tons |
| Display | Color touch screen, English / Chinese [ other languages on request ] |
| Data library | 100 programs |
| Product rate | 2000 - 2500 pcs/h by 100 mm wire length [ Sealing & Crimping ] |
| Optional peripherals | Upper-computer software, CFM, CCD, Wire prefeeder, Wire stacker |
| Air supply | 0.5 MPa [ clean and dry air ], 150 ANR / min |
| Power supply | AC 110 - 220V ± 10%, 50 / 60 Hz |
| Dimensions | L 1200 x W 1100 x H 2300 mm |
| Weight | 525 KG |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
