Automatic Double Drums Wire Prefeeding Unit

JCW-WP03

Infinitely variable speed model

Capable to load 2 cable drums

Constant speed of the guide rail without resistance

Two-way drive, clockwise & anti-clock

10 gears adjustable speed

Automatic induction with independent braking system

Active wire feeding and prefeeding

Controllable by the wire processing machine

Inquire Now

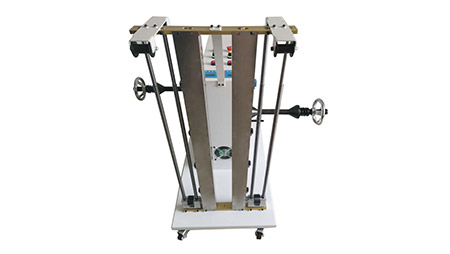

Double Axis Cable Prefeeder

JCW-WP03 Automatic Double Drums Wire Prefeeding Unit

High-efficiency model, excellent price/performance ratio

The JCW-WP03 wire prefeeding unit is capable to load 2 spools, each one weighing up to 40 kg. We are able to customize it with 50 kg. This electrical prefeeding machine is designed to pull wires and cables from 2 reels simultaneously and provides constant tension to downline cable processing machines.

This active cable dereeler is equipped with an infinite speed control system, which is activated with pendulum arms, requires no manual adjustment on feed speed, the feed speed automatically adjusts to the actual requirement of any wire and cable processing machine, including the cutting machine, cutting and stripping machine, automatic terminal crimping machine, etc.

When ordering wire prefeeding machines, we recommend customers submit cable samples or images, also the cutting length and wire processing machine models, so as to offer the most proper models to meet your processing needs.

Model	JCW-WP03 Automatic Double Drums Wire Prefeeding Unit
Wire diameter	0.5 - 8 mm
Wire drum diameter	400 mm
Wire drum width	300 mm
Wire drum weight	40 kg x 2 reels
Rated power	1100 W
Power supply	AC 110 - 220V, 50 / 60 Hz
Dimensions	L 1100 x W 840 x H 1020 mm
Weight	65 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
