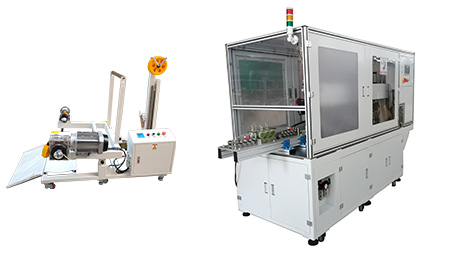

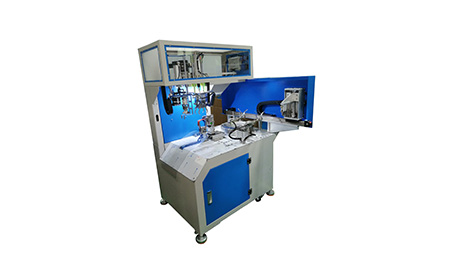

Fully Automatic Winding & Bundling Machine

Function

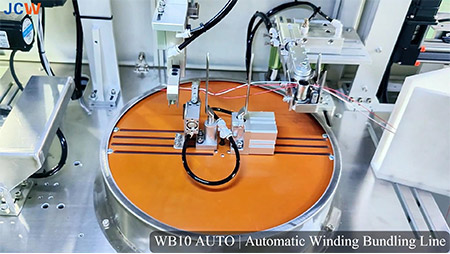

Meter & cut cable into desired lengths, fully stripping two ends, wind cable into a round roll, tie cable roll by iron core cable tie

Cable diameter

Model 1: 2-6 mm

Model 2: 3-6.5 mm

Model 3: 4-10 mm

Cutting length

Model 1: 3-15 m

Model 2: 1-8 m

Model 3: 5-20 m

Cutting length accuracy

Model 1: ±1.5mm/m

Model 2: ±2mm/m

Model 3: ±2mm/m

Stripping length

10-50 mm ± 1mm

Roll inner diameter

Model 1: 50-120 mm. Plate diameter 250mm

Model 2: 100-180 mm. Plate diameter 300mm

Model 3: 150-260 mm. Plate diameter 400mm

Tying range

Model 1: ≤30mm, dual-tying

Model 2: ≤40mm, dual-tying

Model 3: ≤45mm, dual-tying

Production rate

Model 1: 250-350 pcs/h  by 5-8m length; 40-80 pcs/h by 8-15m length

Model 2: 350-380 pcs/h by 3-5m length; 120-150 pcs/h  by 10-15m length

Model 3: 250-350 pcs/h by 5-10m length; 80-120 pcs/h  by 15-20m length

Display

7" Color touchscreen, English / Chinese  [ other languages on request ]

Rated power

3500 W

Power supply

AC 110 - 220 V ± 10%, 50 / 60 Hz

Dimensions

L 2500 x W 1100 x H 1850 mm

Weight

Model 1: 850 KG

Model 2: 1200 KG

Model 3: 1200 KG

CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
