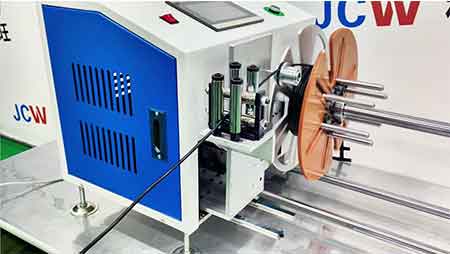

15KG Cable Align & Wind Machine
Model | JCW-WB04W Semi-auto Wire Align & Coil Machine |
Function | Wind cable by order, set piece number of each layer, winding speed, winding cycles, loose wire roll, wire spool |
Cutting diameter | 1- 8 mm [ Customizable ] |
Wound inner diameter | 50 - 200 mm [ Customizable ] |
Wound outer diameter | 210 / 270 / 310 mm optional & customizable |
Wound width | 110 mm |
Winding speed | 1 - 10 cycles / s |
Load weight | 1.5 KG [ 3.0KG / 15 KG versions are optional ] |
Display | Color touchscreen, English / Chinese [ other languages on request ] |
Rated power | 300 W |
Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
Air supply | 0.4 - 0.7 MPa ( clean and dry air ) |
Dimensions | L 380 x W 750 x H 360 mm |
Weight | 30 KG |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
