Wire Harness Pulling & Taping

Wire Harness Pulling & Taping

Model

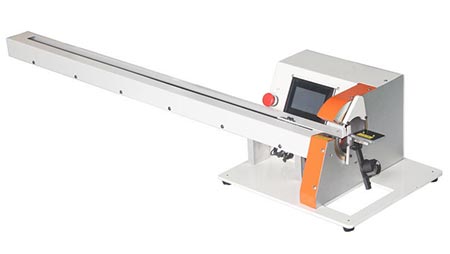

JCW-T02P Puller Type Wire & Cable Harness Taping Machine

Tape width20 mm, Customizable
Tape roll diameter
Inner diameter: 32 - 38 mm, Customizable
Outer diameter: max 110 mm
Wire harness diameter1 - 25 mm
Taping lengthMax 1000mm [ Customizable ]
Power supply AC 110 - 220V, 50 / 60 Hz
DimensionsL 1280 x W 350 x H 260 mm
Weight50 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
