9.5mm O.D Coaxial Cable Stripping Machine

JCW-S600A+ Coaxial Cable Stripping Machine

Rotary stripping, 9 stripping steps, 9.5mm cable, ultra-economic

Updated Model

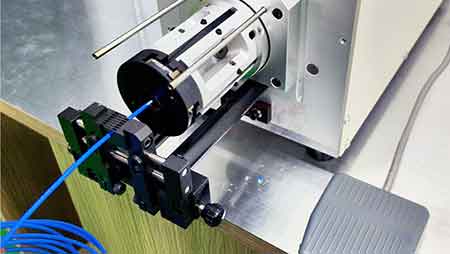

Based on JCW-S600A, we developed the reinforced model JCW-S600A+ stripping machine, this machine uses 4 pieces of blades. The rotating stripping head cuts the entire circumference of the insulation with precision, which minimizes the force needed for pull-off and maximizes the service life of the blades.

The JCW-S600A+ coax stripping machine is suitable for processing cables with hard insulation, some semi-rigid cables also belong to its processing range.

Reliable multistep stripping

The JCW-S600A+ features multistep stripping up to a max of 9 steps, the processing steps for multi-layered cable can be programmed in any desired order. The cable clamping diameter, stripping position and pull-off length of each layer are all programmable via a user-friendly color interface, with no need for any mechanical adjustments when changing wire sizes.

Easy to operate

Each JCW-S600A+ coax & wire stripper comes with a bilingual interface, English, and Chinese. Customers' requirements can change the machine language to make its operation easier. The intuitive display assists the operator with setting the processing parameters. Parameters such as cut duration, pull-off speed, wire diameter, etc. are all settable respectively.
