Power Cord Winding & Bundling Machine [ Tying 8-30 mm ]

JCW-WB Series Cable Winding Bundling / Spooling Machine

Round coil and oval loop, iron core cable tie

Efficient cable handling equipment

The JCW-WB wire winding and bundling machines are brilliant combinations of wire winding and bundling by an iron core cable tie. These machines use PLC controlled color touch screens, the operator just needs to adjust the winding diameter, set desired winding cycles and winding speed. The winding is activated by a foot pedal. The tying is activated by a trigger sensor, feeding length is settable for different tying diameters.

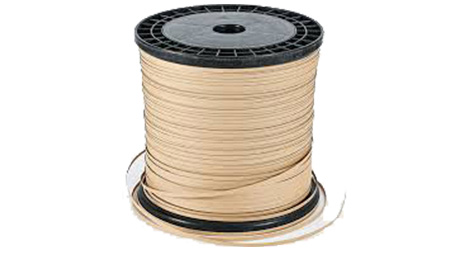

We also supply oval galvanized iron core cable tie, common colors are black and white, and other colors are customizable.

3 models for selection

Please select the proper model or submit your cable diameter, length, winding requirement in words or a sample image, we will recommend a suitable machine.

JCW-WB01, tying diameter 5-30mm, winding diameter 50-200mm, cable tie cutting length 75-140mm.

JCW-WB02, tying diameter 18-45mm, winding diameter 50-200mm, cable tie cutting length 120-190mm.

JCW-WB03, tying diameter 40-80mm, winding diameter 50-280mm, [ 350mm customizable ], cable tie cutting length 200-300mm.

Various applications, customizable models

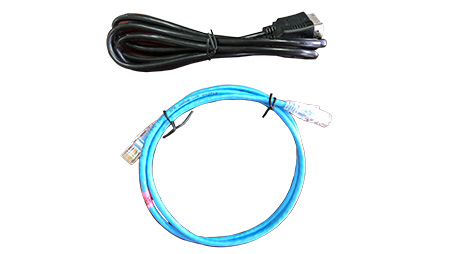

The JCW-WB winding and bundling machines are customizable for various applications and industries besides the wire harness industry. We have rich experience in bundling AC/DC power cable, headphone cable, USB data cable, bathroom rubber hose, and even some bundling work of textile industry and food industry.

Please contact us to get a solution for your production needs.
