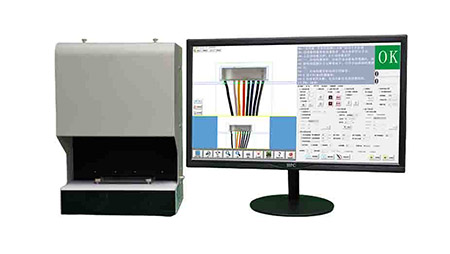

Single Row Connector Color Sequence Testing Machine

JCW-QC17

Automatically identify the color of the lead wire of the harness and judge whether the position is correct

Automatically judge whether the wire connection hole is inserted in the wrong place or dislocated;

Automatically display the position of the bad wire sequence, and give a sound alarm

Count the good products according to the specified number of single bundles

Cycle time less than 0.2 seconds

Inquire Now

Model	JCW-QC17 Single Row Connector Color Sequence Testing Machine
Function	Color detect, automatic focus, housing connector identification
Capacity	1800 sets per hour
FOV	60 x 45 mm
Wire diameter	Min 0.38 mm
Housing PR module	Color feature, grayscale feature, shape feature
Retainer PR module	Color feature, shape feature
Terminal detect	Length feature, area feature, grayscale feature, shape feature
Multi-housing detect	Supportable
Wire position detect	Supportable
Wire diameter difference	Detect range 0.2 mm
Image process speed	10 - 30 ms
Label print	Supportable, label printing barcode ( QR code)
MES connection	Supportable
Data transfer	Supportable, barcode / QC code
Alarm	1. PR housing front and back 2. Retainer missing 3. Terminal error
Gapless cable	Supportable
Two-color wire	Supportable
NG saving	Excel / image
CCD resolution	1.6 million pixels
Lens resolution	140 p/l
Monitor	1920*1080
Marking	Supportable
Continuity test	Supportable
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Dimensions	L 200 x W 250 x H 370 mm
Weight	25 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
