Wire Harness Color Sequence Tester

JCW-QC16

Automatically identify the color of the lead wire of the harness and judge whether the position is correct

Automatically judge whether the wire connection hole is inserted in the wrong place or dislocated;

Automatically display the position of the bad wire sequence, and give a sound alarm

Count the good products according to the specified number of single bundles

Cycle time less than 0.2 second

Inquire Now

Wire Harness Color Inspection

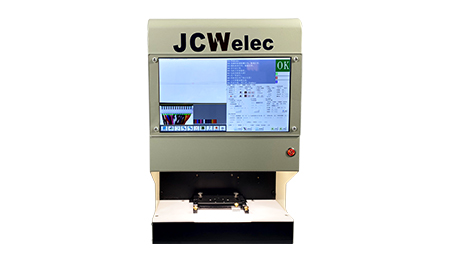

JCW-QC16 Wire Harness Color Sequence Tester

Automatically triggered after placing the wiring harness in the fixture, without the need for an external switch to trigger.

The JCW-QC16 wire harness color sequence detector uses high-performance industrial cameras, the imaging effect is very good, and the detection accuracy is high.

The operation is simple, the user can use it directly, and can learn to operate it in 1 minute.

Long service life, low power consumption of less than 30W, service life is more than 5 times of ordinary PC.

Standard system, strong stability, and versatility, all wiring harnesses can be tested.

Strong anti-interference ability, the wires with character can be detected without affecting the detection results.

Automatically report detection results by voice ( OK or NG ).

Model	JCW-QC16 Wire Harness Color Sequence Tester
Function	Color detect, automatic focus, housing connector identification
Capacity	2200 sets per hour
FOV	60 x 45 mm
Wire diameter	Min 0.38 mm
Housing PR module	Color feature, grayscale feature, shape feature
Retainer PR module	Color feature, shape feature
Terminal detect	Length feature, area feature, grayscale feature, shape feature
Multi-housing detect	Supportable
Wire position detect	Supportable
Wire diameter difference	Detect range 0.2 mm
Image process speed	10 - 30 ms
Label print	Supportable, label printing barcode ( QR code)
MES connection	Supportable
Data transfer	Supportable, barcode / QC code
Alarm	1. PR housing front and back 2. Retainer missing 3. Terminal error
Gapless cable	Supportable
Two-color wire	Supportable
NG saving	Excel / image
CCD resolution	1.6 million pixels
Lens resolution	140 p/l
Monitor	1920*1080
Marking	Supportable
Continuity test	Supportable
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Dimensions	L 300 x W 300 x H 600 mm
Weight	25 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
