IPEX Connector Crimping Machine

Professionally designed for coaxial wire crimping and riveting

Particular terminals on reel, 0.81mm / 1.13mm / 1.32mm / 1.37mm / 1.78mm cable

Cutting, crimping, forming, and waste cutting at one time

Different terminal crimping modules are interchangeable

Crimping tool life over 500,000 times

Inquire Now

IPEX CONNECTOR CRIMPING MACHINE

Model	IPEX Connector Crimping Machine

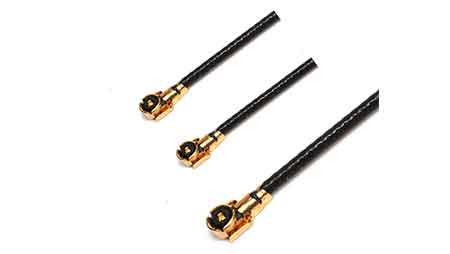

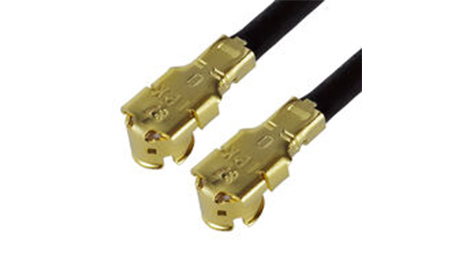

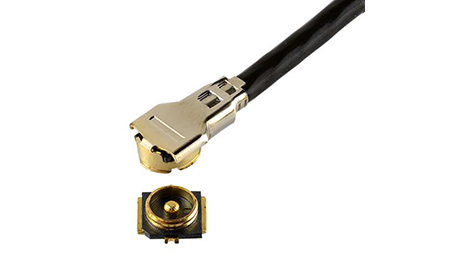

Function	Coaxial cable, female IPEX connector
Cable O.D.	0.81mm / 1.13mm / 1.32mm / 1.37mm / 1.78mm
Product rate	≈1600 pcs
Terminal feeding	Motor control
Noise level	<70db（A)
Power supply	AC 110-220 V ± 10%, 50 / 60 Hz
Air supply	0.5 - 0.7 MPa
Dimensions	L 480 x W 600 x H 210 mm
Weight	10 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
