Loose Pre-insulated End Sleeve Stripper Crimper

JCW-F2

Discontinued model. After-sales service is still available.

Ideal electro-pneumatic controlled strip & crimp machine

Automatic wire stripping and ferrule crimping 2 in 1

Loose piece tubular bootlace ferrules in different lengths

Insulated end sleeves ranging from 0.5 to 2.5 mm²

Fast exchanging a few parts for different cross-sections

Robust construction, reliable operation, industrial quality

Inquire Now

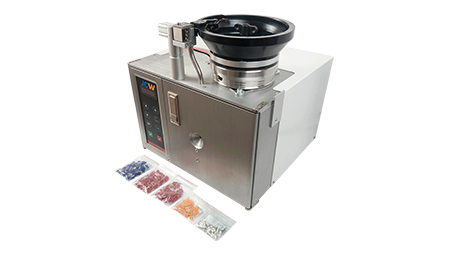

Bootlace Ferrule Crimping Machine

JCW-F2 Automatic Stripping and Crimping Machine

Compact, lightweight, precise, robust, simple operation

Reliable and precise

The JCW-F2 automatic stripper crimper machine by JCW is an ideal electro-pneumatic controlled stripping & crimping machine for processing insulated end sleeves (ferrule). It provides efficient processing of loose wire end sleeves with plastic collars in different lengths. The use of premium components in combination with a robust construction ensures reliable operation.

Easy to use

The JCW-F2 stripping and crimping machine covers bootlace ferrule at different cross-sections ranging from 0.5 to 2.5 mm². The JCW-F2 strip and crimp machine is equipped as standard with tooling for different cross-sections and lengths.

Model	JCW-F2 Automatic Insulated End Sleeve Stripping and Crimping Machine
Function	Single wire, Multicore cable, Wire end stripping, Tubular insulated terminal crimping, Quadrangle crimping, Stripping length, Cutting depth, Data library
Conductor cross-section	0.5, 0.75, 1.0, 1.5 / 2.5 mm² [ changing vibrate bowl ]
Stripping length	Max 17 mm
Crimping shape	Quadrilateral [ imitating square ]
Crimping length	6 - 12 mm
Cycle time	1.8 seconds
Air supply	0.6 - 0.8 MPa ( clean and dry air )
Power supply	AC 110 - 220V ± 10%, 50 / 60 Hz
Dimensions	L 390 x W 380 x H 390 mm
Weight	32 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
