Automatic Wire Crimping to Heat Shrink Tube Shrinking Machine

JCW-CST18D

Fully programmable heat shrink tube processing device

Cut, strip, crimp, print & shrink all in 1

Ferrule crimping is available, only on request

Compatible with all China OTP crimp applicators

Customizable for adapting Europe mini-style applicator

High price-performance ratio

Ultra-compact design, high efficiency

10" touch screen user-friendly operation system

Inquire Now

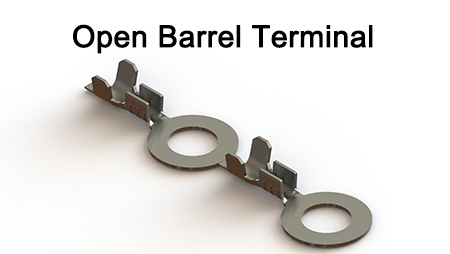

Dual-end Crimping to Heat Shrinkable Tubing Processing

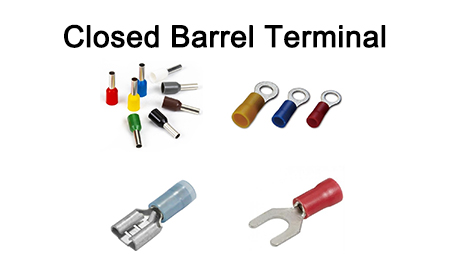

Wire Twisting to Insulated Terminal Crimping

JCW-CST18D Dual-end Wire Crimping to Heat Shrink Tube Processing Machine

Highly automated wire processing center

The JCW-CST18D fully automatic wire strip to heat shrink tubing processing machine combines various working stations: wire cutting and stripping, terminal crimping, heat shrink tubing cutting, insertion and shrinking stations.

This smart machine is capable to meet demanded requirements, all the parameters are programmable via the 10" color touchscreen.

With low investment, JCW offers you high price-to-performance ratio solution for automated wire harness processing.

Model	JCW-CST18D Dual-end Wire Crimping to Heat Shrink Tube Processing Machine
Function	Single/dual end stripping, Full stripping, Partial stripping, Single/Dual end terminal crimping, Heat shrink tubing cutting, insertion & shrink, Cut depth, Pull-off length.
Wire range	AWG 22 - AWG 14
Raw material	PVC, Teflon, Low halogen, etc.
Crimp force	2 tons [ 20 KN ]
Cut length ( L )	75 - 99999 mm
Cut length tolerance	0.2mm ± 0.002 x L
Strip length	Front side: 0.5 - 8 mm
Strip length	Rear side: 0.1 - 10 mm
Production rate	1000 pcs/h by 150mm cutting length
Data library	100 programs
Detector	Wire lack, Wire knot, Wire stripping, Terminal crimping, Air pressure
Optional peripherals	CFM, Wire prefeed machine, Motorized conveyor belt
Display	10" touch screen, English / Chinese [ other languages on request ]
Power supply	AC 110 / 220V ± 10%, 50 / 60 Hz
Rated power	3500 W
Air supply	0.5 - 0.8 MPa [ Clean and dry air ]
Weight	800 KG
Dimensions	L 1800 x W 800 x H 1600 mm
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
