JCW-CST14
Servo motorized automatic terminal crimping machine for ribbon cables
Single- / Dual-end processing, fully programmable
Cable width within 38mm, 2-24P
Cable cutting length 68-950mm
Longer cables can be customized
Transfer cables in a parallel direction, no spin

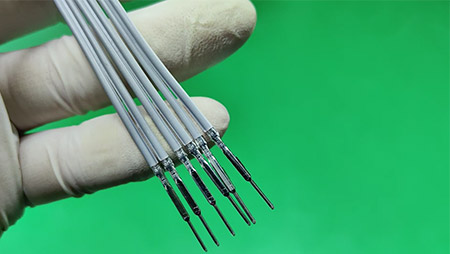

Ribbon Cable Dual-end Terminal Crimping
| Model | JCW-CST14 Fully Automatic Ribbon Cable Crimping Machine |
| Ribbon cable width | Max 38 mm [ AWG28=24P, AWG26=20P ] |
| Cable type | PH/XH/EH/SCN/SM/VH/Dupont |
| Cutting length ( L ) | 68 - 950 mm [ Other lengths on request ] |
| Cutting length tolerance | 0.002 x L |
| Stripping length | Front side: Max 4.5 mm |
| Rear side: Max 10 mm | |
| Crimping force | 2 tons |
| Production rate | 20000 crimping/h by 12P cable 100mm cutting length |
| Data library | 100 programs |
| Detector | Terminal run-out, Cable run-out, Cable knot, Terminal crimping, Air pressure, Paper wind |
| Optional peripherals | CFM, Wire unwinder |
| Display | 7" touch screen, English / Chinese [ other languages on request ] |
| Power supply | AC 110 - 220V ± 10%, 50 / 60 Hz |
| Rated power | 3000 W |
| Air supply | 0.4 - 0.8 MPa [ Clean and dry air ] |
| Weight | 600 KG |
| Dimensions | L 2300 x W 1200 x H 1550 mm |
| CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
