Ultra-short PCB Jumper Wire Processing Machine [ 5mm ]

JCW-CS16

Ultra-short wire cutting and stripping

Cutting length 5mm with 2mm stripping length at dual ends

4.3" color touchscreen simplifies programming

Single wire 0.3 mm² to 0.75 mm² [ AWG22 - 18 ]

Automatic cutting length calibration ensures precision

A fully programmable model saves 100 program

Inquire Now

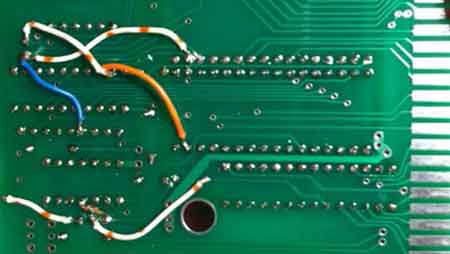

PCB-Jumper-Wire-Cutting-Stripping-Machine

Automatic Ultra-short 4 Wire Cutting and Stripping Machine JCW-CS16

Professional ultra-short LED wire processor

High-speed and Precise

The JCW-CS16 is a proven fast and precise bench-top machine for cutting & stripping applications, specially designed for the LED light industry. This cut & strip machine is equipped with high torque step motors, subdivision drivers, wear-resistant steel rollers ( urethane rollers are optional ), a robust cutter head, and a transparent safety cover. This excellent wire cut & strip machine processes 4 single wires up to 0.75 mm², with a high level of precision ± 0.002 x wire length, meanwhile producing 15000 pieces per hour.

Simple operation, high-performance

Whether novice or professional, you can quickly use the JCW-CS16 wire cutting & stripping machine proficiently. The control with touch screen has an intuitive user interface for simple and safe operation. Thanks to the microprocessor control, the parameters such as wire cutting length, stripping length, wire diameter, speed, etc. can be accurately entered and stored for future recall at any time.

This cutting and stripping machine features an automatic one-touch calibration function for cutting length and middle strip capability.

Model	JCW-CS16 Ultra-short 4 Wire Cutting and Stripping Machine
Function	LED light wire, Wire measuring, Cut into length, Length correction, Cut depth, Strip length
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections	0.3 - 0.75 mm² [ AWG 22 - 18 ]
Capacity	Cut 5 mm with strip 2 mm at dual-ends
Production rate	15000 pcs/h
Feeding unit	4 rollers [ steel / Urethane ]
Data library	100 programs
Display	4.3" color touchscreen, English / Chinese [ other languages on request ]
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	Machine: L 460 x W 470 x H 350 mm
Dimensions	Wire straightener: 250mm
Weight	35 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
