JCW-S600C MAX HV & Coaxial Cable Stripping Machine

Heavy-duty, fully programmable, 9 stripping steps


25mm diameter cable, 350mm stripping length

The JCW-S600C MAX coaxial wire stripping machine is designed for processing heavy-duty cables up to 25mm in diameter. This coax stripper is also reliable for processing various single wire, multiconductor cable, coaxial, triaxial cable, and conductors with braided insulation, some semi-rigid cables also belong to the processing range.


The JCW-S600C MAX is an ideal machine for low-volume, quick-changeover applications also high-volume production needs, offering the best possible productivity and flexibility.


The coaxial stripping machine is equipped with centralizer, so you don't need to do calibration after changing new blades, this ensures high precision and simple operation.

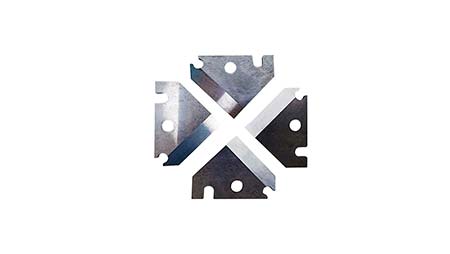

4 pieces of blades meet tough precision requirements. The rotating stripping head cut the entire circumference of the insulation with precision, which minimizes the force needed for pull-off, and maximizes the service life of the blades.


Easy to operate

Each JCW-S600C MAX coaxial cable & wire stripping machine comes with a bilingual interface in English and Chinese. The machine language can be changed by customers' requirements to make its operation easier. The intuitive display assists the operator with setting the processing parameters. Parameters such as cut duration, pull-off speed, wire diameter, etc. are all settable respectively.

Model

JCW-S600C MAX Heavy-duty Coax & HV Cable Strip Machine

FunctionCoaxial cable, multistep stripping, rotary stripping, full stripping, partial stripping.
Raw materialPVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Cable diameter2 - 25 mm
Stripping length 0.1 - 350 mm
Cutting depth increment
0.01 mm
Blades4 pcs
Stripping steps9
Production rate300 - 500 pcs/h
CentralizerYes
Data libraryYes
OEMYes
Display4.3" color touchscreen, English / Chinese  [ other languages on request ]
Power supply
AC 110 / 220 V ± 10%, 50 / 60 Hz
DimensionsL 1180 x W 236 x H 400 mm
Weight62 KG
CE-Conformity

Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
