Automatic Single Head Terminal Crimping Seal Insertion Machine

JCW-CST16B

Mitsubishi or Innovance servo motors, optional

Wire tinning station can be added

Cutter head adopts high-grinding screw and servo guide

2 ton casting type crimp press

Flux / scrap tin / smoker collector

Inquire Now

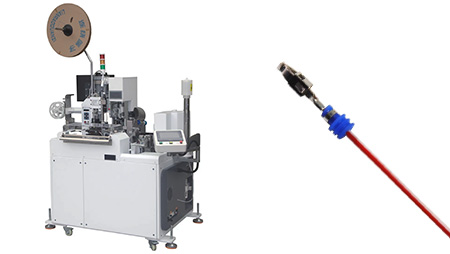

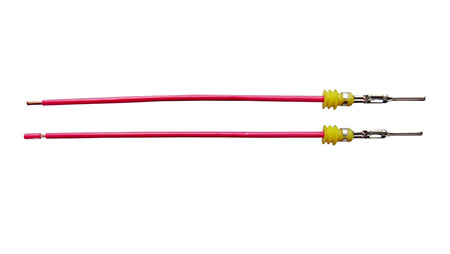

Single-end Wire Seal Insertion to Terminal Crimp

Model	JCW-CST16B Automatic Single Head Terminal Crimping Seal Insertion Machine
Function	Wire measuring and cut into length, Side A: wire stripping, twisting, sealing, crimping; Side B: wire stripping; optional: conductor twisting, wire fluxing & thinning
Raw material	AV, AVS, AVSS, CAVUS, KVKIV, UL
Wire Size	AWG32 - 16
Insulation length	17mm with dual-end stripping [ can be customized to 12mm ]
Cut length accuracy	±0.1（0.1＋0.003*L）mm, L=cutting length
Strip length	Front end: 15 mm Rear end: 18 mm
Tinning length	Max 18 mm
Crimping press	Servo motorized
Crimping force	2 tons
Crimping applicator	Side-feed, End-feed
Display	Color touch screen, English / Chinese [ other languages on request ]
Data library	100 programs
Product rate	1200 - 1700 pcs/h by 100 mm wire length [ Sealing & Crimping & Tinning ]
Optional peripherals	CFM, CCD, Wire prefeeder
Air supply	0.6 MPa [ clean and dry air ]
Power supply	AC 110 - 220V ± 10%, 50 / 60 Hz
Dimensions	L 1200 x W 1100 x H 1580 mm
Weight	500 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
