Horizontal Transfer 5 Wires Strip Crimp to Tin Solder Machine

JCW-CST06C

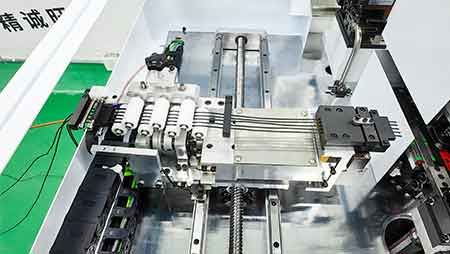

Horizontal conveying wires to crimp station

Keep wires straight throughout the process

Guarantee precise terminal crimping

Increased machine stability

Inquire Now

Horizontal Move 5 Wires Crimping to Tinning Machine

Model	JCW-CST06C Horizontal Transfer Wire 5 Wires Strip to Tin Solder Machine
Function	5 wires, Single/dual end stripping, Full stripping, Partial stripping, Middle stripping, Front side crimping, Rear side fluxing & tinning, Cut depth, Pull-off length.
Transfer wires	Horizontal move
Wire range	AWG 32 - AWG 16
Raw material	PVC, Teflon, Low halogen, etc.
Crimp force	2 tons [ 20 KN ]
Cut length ( L )	1000 mm [ Customizable ]
Cut length tolerance	0.002 x L
Minimum insulation length	20 mm
Strip length	0.1 - 10 mm
Twist length	2 - 10 mm
Tinning length	1 - 10 mm
Production rate	5000 pcs/h by 100mm cutting length
Data library	100 programs
Detector	Wire lack, Wire knot, Wire stripping, Terminal crimping, Air pressure
Smoke collect system	Yes
Optional peripherals	CFM, Wire unwinder
Display	7" touch screen, English / Chinese [ other languages on request ]
Power supply	AC 110 - 220V ± 10%, 50 / 60 Hz
Rated power	2500 W
Air supply	0.6 - 0.8 MPa [ Clean and dry air ]
Weight	380KG
Dimensions	L 2000 x W 1500 x H 820mm
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
