Electric Car Charger Cable Cutting and Stripping Machine

JCW-CS710

EV high voltage charging cable up to 120mm²

Multi-layer shielding cable, coaxial cable up to 22mm O.D.

Multi-step processing, max 6 steps stripping

Servo drive, Rotary incision unit, belt feeding system

7" color touchscreen, multi-language software

Interlock safety cover, safe and simple operation

Inquire Now

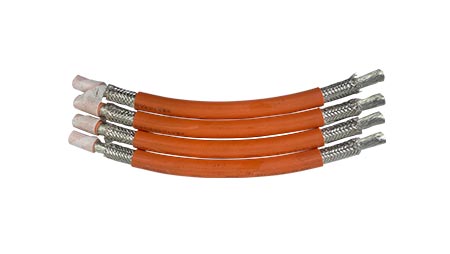

High Voltage Cable Cutting Stripping

Model	JCW-CS710 EV High Voltage Cable Cutting and Stripping Machine
Function	Coaxial cable, EV cable, rotary cutting, cut depth, strip length
Cable diameter	6 - 22 mm
Cutting length ( L )	240 - 99999 mm
Cutting length accuracy	0.1 mm
Stripping length	Front ( right ) side: 260 mm
Stripping length	Rear ( left ) side: 120 mm
Production rate	450 - 750 pcs/h
Data library	100 programs
Rated power	4000 W
Multicore cable	Double layers stripping
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	L 1320 x W 860 x H 1550 mm
Weight	550 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
