Automatic Cable Cutting Stripping & Winding System

JCW-CS05C | JCW-WS Series

Compact design, freestanding model

Cable rewinding machine is compatible

User-friendly English touchscreen

Transparent safety guard

Inquire Now

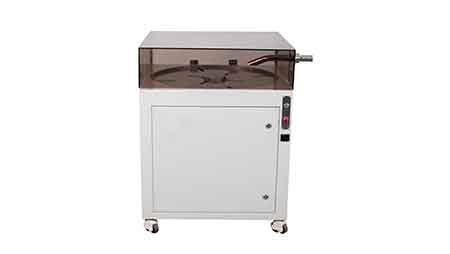

Automatic Cable Cutting Stripping Coiling Machine

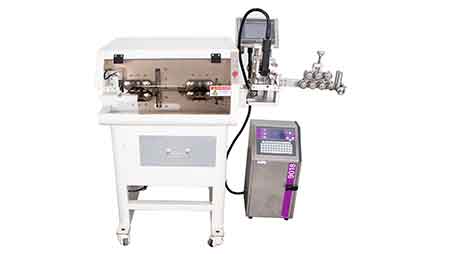

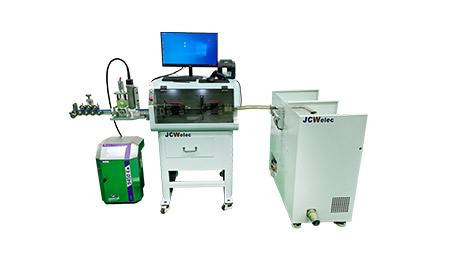

Automatic Cable Cutting Stripping Ink-jet Printing

Model	JCW-CS05C Automatic Cable Cutting Stripping & Winding System
Function	Single wire, Multicore cable, Wire measuring, Cut length, Full stripping, Partial stripping, Mid-stripping, Cut depth, Length correction, Cable rewinding ( optional )
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Cable range	30 mm², 15 mm diameter [ Customizable ]
Cutting length ( L )	0.1 - 999999 mm
Cutting length accuracy	0.002 x L
Stripping length	Front full strip：1- 200mm, partial strip: 1-500m
Stripping length	Rear full strip：1- 80mm，partial strip：1-200mm
Production rate	800 pcs/h
Data library	100 programs
Winding diameter	3 models for selection WS360: 200 - 360mm WS680: 200 - 680mm WS1000: 200 - 960mm
Display	7" color touchscreen, English / Chinese [ other languages on request ]
Cable feeding	Belt feeding system, 8 rollers
Compatible peripherals	Cable prefeeding machine, robot arm, conveyor belt, cable rewinding machine
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	L 850 x W 600 x H 1300 mm
Weight	120 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
