Single Wire Middle Stripping Machine

JCW-CS03W

Updated based on model JCW-CS03

Intergrated pneumatic mid-strip device

Fully programmable via HMI

Mid-strip position, stripping length, etc

Inquire Now

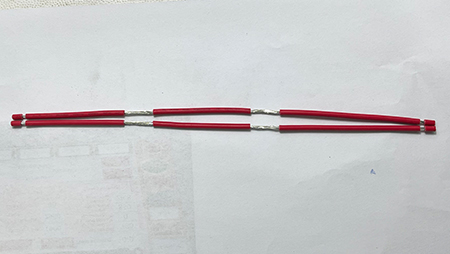

Hook Up Wire Middle Stripping

Model	JCW-CS03W Wire Middle Stripping Machine
Function	Single wire,Wire measuring, Cut into length, End stripping, Window stripping
Raw material	PVC, Teflon, Silicone, Low halogen, Fiberglass, etc
Conductor cross-sections	0.03 - 6 mm² [ 10mm² on request ]
Cutting length ( L )	0.1 - 999999 mm
Cutting length accuracy	0.002 x L
Stripping length	Front ( right ) side: 50 mm [ Full stripping ]
Stripping length	Rear ( left ) side: 30 mm [ Full stripping ]
Middle strip	Programmable
Production rate	4700 - 9500 pcs/h by 50mm wire length [ single/double wire guider ]
Data library	100 programs
Zip-cord	Optional
Roller lift function	Optional
Fully covered safety guard	Optional
Display	4.3" color touchscreen, English / Chinese [ other languages on request ]
Compatible peripherals	Cable splitter, wire pre-feeder, robot arm, conveyor belt, hot stamping machine, inkjet printer
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Air supply	0.4 - 0.7 MPa ( clean and dry air )
Dimensions	L 460 x W 470 x H 350 mm
Weight	38 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
