Touch screen, user-friendly software
Stainless steel rope within 3mm diameter
Automatic measuring, cutting and stacking
Powerful cutter head, robust cutting blade
JCW-C12
Touch screen, user-friendly software
Stainless steel rope within 3mm diameter
Automatic measuring, cutting and stacking
Powerful cutter head, robust cutting blade

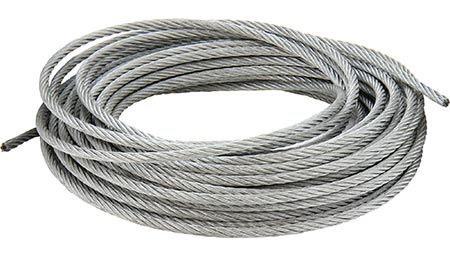

Stainless Steel Wire Cutting

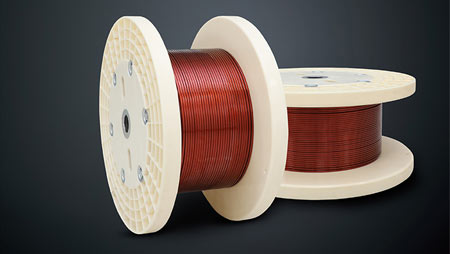

Enamelled Magnet Wire Cutting
Model | JCW-C12 Automatic Stainless Steel Wire Rope Cutting Machine |
Wire range | Stranded wire rope, max diameter 3mm. Solid copper wire, 16 mm² |
Cutting length ( L ) | 0.1 - 9999 mm |
Productivity | 1500 - 2000 pcs/min |
Data library | 100 recipes |
Blade material | High-speed steel |
Feeding system | 4 metal rollers |
OEM | Yes |
Language | English, Chinese |
Compressed air | 0.4 - 0.7 MPa |
Power supply | AC 110 - 220V + 10 %, 50 / 60 Hz |
Dimensions | L 500 x W 400 x H 360 mm |
Weight | 55 KG |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
