Single Head Wire Twisting Machine

JCW-325A

Twist single wires into twisted pair

LCD display, English menu, fully programmable

Data library saves 99 twisting programs

High-speed, 300 - 7500 RPM

Max 20 sections twisting

Twisting direction and speed are adjustable for each section

Inquire Now

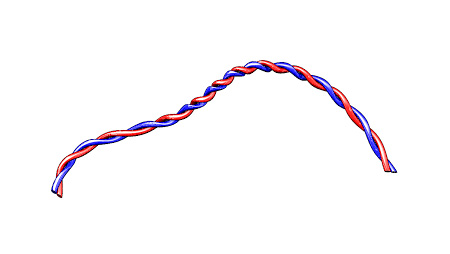

Wire Twist Machhine

JCW-325A Electric Wire Twisting Machine

Twist two or more single wires and cables

The JCW-325A motorized wire twisting machine is designed to replace traditional wire twisting by hand or manual tools. This machine uses an electronic control system, the axis is connected to the motor directly with no belt consumption.

Complete industrial-grade protection circuit design to ensure trouble-free operation for more than 20,000 hours.

Complete data protection function, data can be stored permanently.

The machine is capable of carrying out multi-section twisting. The twisting speed and direction of each section can be set individually.

Automatic clamping VS Manual clamping

We provide automatic and manual wire clamping methods. The automatic clamping method is suitable for twisting short wires, while the manual wire holder model is more suitable for twisting long wires.

Please contact us and our sales staff will provide you with the best twisting solution.

Model	JCW-325A Electric Wire Twisting Machine
Function	Twist 2 wires into pairs, twist cycles, twist speed, data library, multi-section twisting
Twisting speed	300 - 7500 RPM
Twisting cycles	0.5 - 9999.9
Wire diameter	2 x 1.2 mm max
Data library	99 wire programs
Multi-section twisting	20 sections max
Power supply	AC 110 - 220 V ± 10%, 50 / 60 Hz
Dimensions	L 220 x W 240 x H 290 mm
Weight	15 KG
CE-Conformity	Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility.
