Powerful servo motor
7" touchscreen, easy operation
Fully programmable, saving crimping height
Transparent safety guard protects operator
Adjustable terminal positioning device

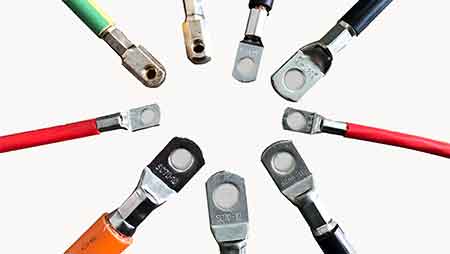

Hexagon applicator with customizable crimping width
JCW-20TS
Powerful servo motor
7" touchscreen, easy operation
Fully programmable, saving crimping height
Transparent safety guard protects operator
Adjustable terminal positioning device
Hexagon applicator with customizable crimping width
Model | JCW-20TS 120SQMM Servo Model Hexagonal Lug Crimping Machine |
Function | Servo motor control, Uninsulated tubular terminal, Hexagonal crimping, Crimp height adjustment on-screen, Data library, Freestanding model, Easy to move |
Cable range | 10 - 120 mm² [ Min AWG 10 ] |
Crimping force | 150 KN |
Crimping length | 12.5 mm [ other lengths on request ] |
Rated power | 3800 W |
OEM | Yes |
Activation | Foot pedal |
Power supply | AC 110 - 220 V ± 10%, 50 / 60 Hz |
Dimensions | L 685 x W 375 x H 915 mm |
Weight | 190 KG |
CE-Conformity | Complies with CE equipment guidelines relative to mechanical and electrical safety and electromagnetic compatibility. |
